Rules for Classicmouse

Micromouse Contest is a contest which an autonomous robot runs through a designated maze to compete for intelligence and speed. A robot participating in this contest is termed Micromouse.

1. Rules for Classicmouse

1-1. Micromouse must be autonomous. It is not allowed to use an energy source given by combustion process.
1-2. Micromouse must not have any hardware or software added, deleted, replaced or modified by the operator during the contest. It is however permitted to make minor repairs.In some contests, battery changes may be allowed. In such case, the battery must be the same specification.
1-3. Micromouse is not allowed to leave any of the parts on the maze.
1-4. Micromouse is not allowed to jump over, climb, scratch, damage or destroy the walls.
1-5. The projection of the Micromouse on the floor must be contained within a square of each sides in 25 cm. This must be satisfied even when the shape of the Micromouse changes during the contest. There are no restrictions to the height of the Micromouse.

2. Rules for the Maze

2-1. The side of the walls are white, and the top of the walls are red. The floor of the maze is painted in black. It is made of wood, finished with non-gloss black paint. However, top of the walls for the finish zone and the starting point are painted in red, white or yellow.
2-2. The maze are composed of 18 x 18 cm unit squares. The maximum number of squares will be 16 x 16 squares.The height of the walls are 5 cm and its thickness are 1.2 cm (see Fig. 1 for details).
2-3. The starting point of the maze will be located at one of the four corners of the maze. Micromouse starts in a clockwise direction. The finish zone is located on the center 4 section.
2-4. There are Small square zones, each 1.2 cm x 1.2 cm, at the four corners of each unit square. This zone is called attice points, and a maze are built so that there are at least one wall to a lattice point except for the interior of the finish zone (see Fig. 1 for details). The entire maze will be completely surrounded by exterior walls (see Figs. 1 and 2).

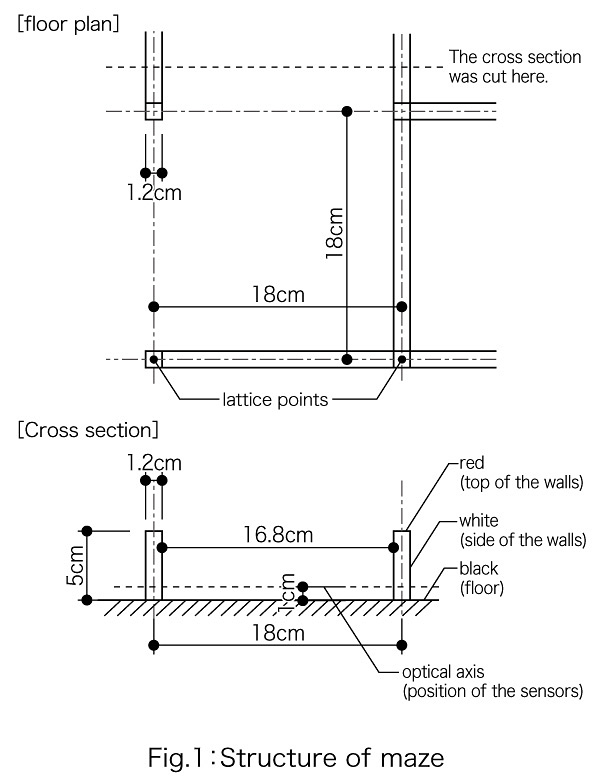

Fig.1: Structure of maze
Fig. 2: Position of the start sensor and goal sensor

3. Rules for the contest

3-1. The fastest lap from the start to the finish zone will be recorded as its official time. Classicmouse Contest will be evaluated on the fastest lap and its independence. The criteria for evaluation and the rules for awarding prizes are determined at each contest.
3-2. After the maze is open to public, the operator is not allowed to feed any maze information to Micromouse. During the contest, the operator is not allowed to change any maze information gathered from the search run, using switch or its kind.
3-3. Micromouse begins its run from a starting point and ends when it came back. The run will also finish when Micromouse stops for 2 seconds or it is approved by chairperson.
3-4. When Micromouse returns to the starting point and beings another run automatically, the Micromouse must stop for at least 2 seconds at the starting point.
3-5. The operator is not allowed to touch the Micromouse during the run unless instructed or given permission by a tournament chairperson to do so. The tournament chairperson accepts an operator’s request to discontinue its run if an apparent malfunction is found in his/her micromouse’s run. For the cases in which a request to discontinue is made for any other reasons, permissions will be made on the condition which all memory of the maze is erased.
3-6. The time limit for one competitor is basically 7 minutes. This limit will change to 5 minutes depending on the tournament. Micromouse is permitted to make up to 5 runs.
3-7. Micromouse is considered to have completed the run when the entire lower portion of its body (defined as its portion up to 5 cm above the floor level) has entered the finish zone. However, elapsed time are measured from the moment the sensors placed at the starting point senses the Micromouse and to the moment the sensor located at the entry point to the finish zone senses the same Micromouse.
3-8. The lightings, temperature and humidity of the room in which the maze is located will be those of an ambient environment. Requests to adjust the lightings will not be accepted.
3-9. The tournament chairperson has the rights to ask to the operator about the Micromouse if it is appropriate. The tournament chairperson also has the rights to stop a run, declare disqualification, or ask for instructions if it is appropriate.
3-10. Prizes and evaluation criteria will be set individually for each competition.

[Attention]

1. Contestant is not permitted to load programs or replace ROM during a contest. It is also prohibited to send any information to Micromouse from development unit or console box that is independent from the main Micromouse unit.
2. Contestant is permitted to remove dust and debris on the tires during a contest using adhesive tape, etc.; however, no solvents and likely may be used for the purpose of increasing friction.
3. In each of its runs, Micromouse may continue its search even after it has reached the finish zone. In such a case, the elapsed time when Micromouse has reached the finish zone for the first time will be recorded.
4. If Micromouse returns to the starting point and begins another run within 2 seconds, it is assumed that the next run has begun. However, this run will be invalid.
5. Except for the run, Micromouse may not be placed for adjustment or other purposes in any part of the maze other than on the starting point.
6. Dimensions of Micromouse
The size of the lower structure of Micromouse is constrained by the size of the maze despite the provisions of article 1-5.
7. Structure of Maze
The maze is made in a sensible accuracy. So that there will be errors to the maze dimension to some extent. As the maze is designed to come apart for preservation, it may produce gaps or difference in level of approximately 1 mm between sections of the walls or the floor. There may be non-uniform coloring, discoloring and stains.
8. Type and position of the Sensors for recording
Type: Transmission photoelectric sensors.
Optical axis placed 1 cm above the floor. (See Fig.1)
Position: Start sensor: At the boundary between the starting unit square and the next unit square.
Goal Sensor: The entry point for the finish zone. (See Fig.2)
9. In the 4 section of finish zone, there will be no walls or poll
